IP6VX - 6 Volt Regulated Input Plug
IP6VX - 6 Volt Regulated Input Plug

IP6VX - 6 Volt Regulated Input Plug

IP6VX - 6 Volt Regulated Input Plug
Click to enlarge image(s)

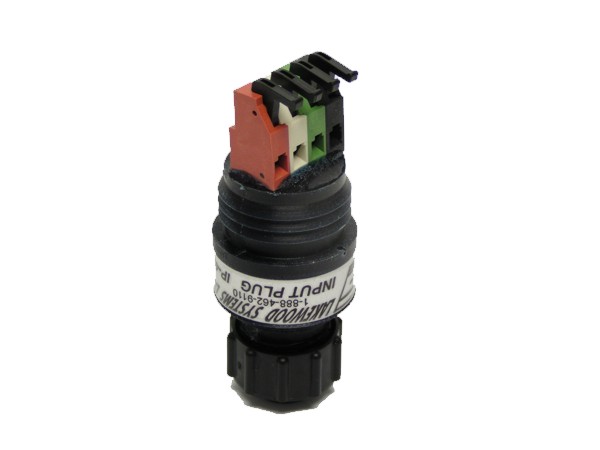

The IP6VX input plug has the same input/output configuration as an IPX plug with the exception that it has an internal regulator which supplies 6 volts on terminal 4 (normally the B+ connector). The 6 volt regulator is powered from the internal auxiliary instrument battery when the plug is connected to a Lakewood Data Logger.
