CCTR Calibration Certificate (Raingauge)
CCTR Calibration Certificate (Raingauge)

CCTR Calibration Certificate (Raingauge)

CCTR Calibration Certificate (Raingauge)
Click to enlarge image(s)
Rain Gauge Calibraiton Certificates can be supplied for new rain gauges or for existing customer gauges.

Lakewood has developed a very advanced system for calibrating tipping bucket type rain gauges.

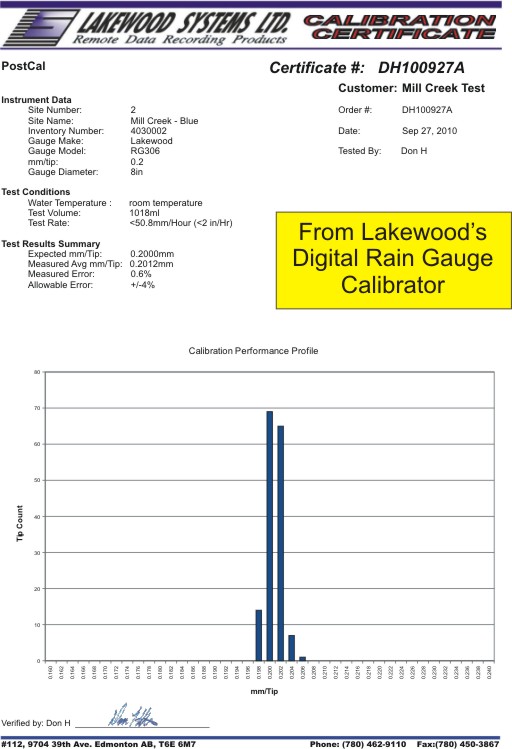

Part of the system is made up of a digitally controlled pump combined with an advanced software control system which provides an extremely detailed analysis of each tip. The gauge is brought into calibration with the aid of a graphic screen indicating the required adjustments. Once adjusted, the gauge is then put through a 1 liter simulated rainfall event to test its accuracy. The results of this test are then shown in the calibration certificate in the form of a histogram which provides a very accurate view of the performance of the gauge. A narrow histogram indicates a higher gauge accuracy. With this type of dynamic view of the calibration results, intermittent problems can be detected by any outlying events on the histogram.
